VPN

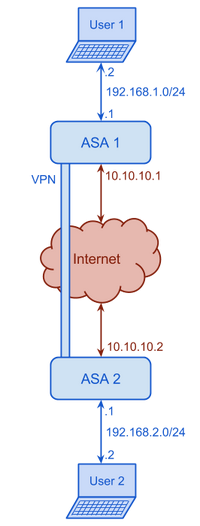

Cisco ASA supports different types of VPNs. In this section Lan2Lan or Site2Site IPsec VPN is explained. We have two ASA 5505 devices and we want to create an IPsec VPN. The following figure shows the network diagram.

In order to set up the VPN we will start with ASA1 configuration. We assume that ASA1 is not configured yet.

  1. Connect from console port, configure hostname, interfaces, ICMP inspection, NAT and ssh connection.
    2. ciscoasa>enable Password: ciscoasa#configure terminal ciscoasa(config)#hostname ASA1 ASA1(config)#interface vlan 1 ASA1(config-if)#ip address 192.168.1.1 255.255.255.0 ASA1(config-if)#nameif inside INFO: Security level for "inside" set to 100 by default. ASA1(config-if)#interface vlan 2 ASA1(config-if)#ip address 10.10.10.1 255.255.255.0 ASA1(config-if)#nameif outside INFO: Security level for "outside" set to 0 by default. ASA1(config-if)#exit ASA1(config)#interface ethernet0/0 ASA1(config-if)#switchport access vlan 2 ASA1(config-if)#no shutdown ASA1(config-if)#exit ASA1(config)#interface ethernet0/1 ASA1(config-if)#no shutdown ASA1(config-if)#exit ASA1(config)#policy-map global_policy ASA1(config-pmap)#class inspection_default ASA1(config-pmap-c)#inspect icmp ASA1(config-pmap-c)#exit ASA1(config-pmap)#exit ASA1(config)#access-list inside_nat_outside extended permit ip 192.168.1.0 255.255.255.0 10.10.10.0 255.255.255.0 ASA1(config)#nat (inside) 1 access-list inside_nat_outside ASA1(config)#global (outside) 1 interface ASA1(config)#username basicinternet password basicinternet privilege 15 ASA1(config)#crypto key generate rsa modulus 2048 WARNING: You have a RSA keypair already defined name <Default-RSA-Key>. Do you really want to replace them? [yes/no]: yes Keypair generation process begin. Please wait... ASA1(config)#aaa authentication ssh console LOCAL ASA1(config)#ssh 192.168.1.0 255.255.255.0 inside ASA1(config)#write memory ASA1(config)#exit ASA1#exit ASA1>
  2. Now we can establish ssh connection and configure it through User 1 pc. So let start with some preliminary steps. The first thing will be to create two access-lists in order to identify traffic going from one side to another. The first access-list will be used to identify which traffic ASA has to encrypt and the second to know which traffic does not have to translate.
    3. terminal$ ssh basicinternet@192.168.1.1 basicinternet@192.168.1.1's password: ASA1>enable Password: ASA1#configure terminal ASA1(config)#access-list lan_to_lan permit ip 192.168.1.0 255.255.255.0 192.168.2.0 255.255.255.0 ASA1(config)#access-list nat0_lan_to_lan permit ip 192.168.1.0 255.255.255.0 192.168.2.0 255.255.255.0
  3. So now we will configure the tunnel.
    1. Firts of all, we will enable isakmp in the outside interface. isakmp (Internet Security Association Key Management Protocol) is the hand-shake part of the configuration.
      2. ASA1(config)#crypto isakmp enable outside
    2. Then we set up tunnel's remote ip address and the type of tunnel. In this case Lan2Lan (l2l).
      3. ASA1(config)#tunnel-group 10.10.10.2 type ipsec-l2l
    3. Establish the tunnel attributes
      4. ASA1(config)#tunnel-group 10.10.10.2 ipsec-attributes
      1. The first attribute will be the pre-shared key
        2. ASA1(config-tunnel-ipsec)#pre-shared-key basicinternet
      2. Keepalive time
        3. ASA1(config-tunnel-ipsec)#isakmp keepalive threshold 10 retry 2 ASA1(config-tunnel-ipsec)#exit
    4. After setting the preliminary configuration let continue with tunnel phase 1 (hand-shake [key exchange])
      1. First we will set that we are going to use pre-shared key
        2. ASA1(config)#crypto isakmp policy 10 authentication pre-share
      2. Next we need to set our encryption
        3. ASA1(config)#crypto isakmp policy 10 encrypt 3des
      3. The hashing algorithm
        4. ASA1(config)#crypto isakmp policy 10 hash sha
      4. Finally the diffie-helman group and the key livetime
        5. ASA1(config)#crypto isakmp policy 10 group 2 ASA1(config)#crypto isakmp policy 10 lifetime 86400
    5. Now is time for phase 2 (setting up the tunnel)
      1. The first thing is to define the transform set
        2. ASA1(config)#crypto ipsec transform-set ESP-3DES-SHA esp-des esp-sha-hmac
      2. Now we have to map the cryptomap to the access control list
        3. ASA1(config)#crypto map map_lan_to_lan 1 match address lan_to_lan
      3. Then we are going to configure perfect forwarding secrecy which randomizes TCP sequence numbers adding another layer of security
        4. ASA1(config)#crypto map map_lan_to_lan 1 set pfs group1
      4. Next we are going to identify our peer, the other end of the connection
        5. ASA1(config)#crypto map map_lan_to_lan 1 set peer 10.10.10.2
      5. Then we are going to say to our cryptomap which transform set to use
        6. ASA1(config)#crypto map map_lan_to_lan 1 set transform-set ESP-3DES-SHA
      6. Finally we are going to apply the cryptomap to the outside interface
        7. ASA1(config)#crypto map map_lan_to_lan interface outside
    6. So now we are going to configure NAT in order to specify not to translate this addresses.
      7. ASA1(config)#nat (inside) 0 access-list nat0_lan_to_lan
    7. Finally we are going to configure the default route
      8. ASA1(config)#route outside 192.168.2.0 255.255.255.0 10.10.10.2
    8. Last step, save the configuration
      9. ASA1(config)#write memory Building configuration... Cryptochecksum: c47ca90d a167f297 2fb5ca80 2d4343fe 3929 bytes copied in 1.740 secs (3929 bytes/sec) [OK] ASA1(config)#


    So lets continue with ASA2 configuration. We assume that ASA2 has been already configured and that we are connected through ssh.

    1. First of all we create the necessary access-lists.
      2. ASA2(config)#access-list lan_to_lan permit ip 192.168.2.0 255.255.255.0 192.168.1.0 255.255.255.0 ASA2(config)#access-list nat0_lan_to_lan permit ip 192.168.2.0 255.255.255.0 192.168.1.0 255.255.255.0
    2. So now we will configure the tunnel.
      1. Firts of all, we will enable isakmp in the outside interface. isakmp (Internet Security Association Key Management Protocol) is the hand-shake part of the configuration.
        2. ASA2(config)#crypto isakmp enable outside
      2. Then we set up tunnel's remote ip address and the type of tunnel. In this case Lan2Lan (l2l).
        3. ASA2(config)#tunnel-group 10.10.10.1 type ipsec-l2l
      3. Establish the tunnel attributes
        4. ASA2(config)#tunnel-group 10.10.10.1 ipsec-attributes
        1. The first attribute will be the pre-shared key
          2. ASA2(config-tunnel-ipsec)#pre-shared-key basicinternet
        2. Keepalive time
          3. ASA2(config-tunnel-ipsec)#isakmp keepalive threshold 10 retry 2 ASA2(config-tunnel-ipsec)#exit
      4. After setting the preliminary configuration let continue with tunnel phase 1 (hand-shake [key exchange])
        1. First we will set that we are going to use pre-shared key
          2. ASA2(config)#crypto isakmp policy 10 authentication pre-share
        2. Next we need to set our encryption
          3. ASA2(config)#crypto isakmp policy 10 encrypt 3des
        3. The hashing algorithm
          4. ASA2(config)#crypto isakmp policy 10 hash sha
        4. Finally the diffie-helman group and the key livetime
          5. ASA2(config)#crypto isakmp policy 10 group 2 ASA2(config)#crypto isakmp policy 10 lifetime 86400
      5. Now is time for phase 2 (setting up the tunnel)
        1. The first thing is to define the transform set
          2. ASA2(config)#crypto ipsec transform-set ESP-3DES-SHA esp-des esp-sha-hmac
        2. Now we have to map the cryptomap to the access control list
          3. ASA2(config)#crypto map map_lan_to_lan 1 match address lan_to_lan
        3. Then we are going to configure perfect forwarding secrecy which randomizes TCP sequence numbers adding another layer of security
          4. ASA2(config)#crypto map map_lan_to_lan 1 set pfs group1
        4. Next we are going to identify our peer, the other end of the connection
          5. ASA2(config)#crypto map map_lan_to_lan 1 set peer 10.10.10.1
        5. Then we are going to say to our cryptomap which transform set to use
          6. ASA2(config)#crypto map map_lan_to_lan 1 set transform-set ESP-3DES-SHA
        6. Finally we are going to apply the cryptomap to the outside interface
          7. ASA2(config)#crypto map map_lan_to_lan interface outside
      6. So now we are going to configure NAT in order to specify not to translate this addresses.
        7. ASA2(config)#nat (inside) 0 access-list nat0_lan_to_lan
      7. Finally we are going to configure the default route
        8. ASA2(config)#route outside 192.168.1.0 255.255.255.0 10.10.10.1
      8. Last step, save the configuration
        9. ASA2(config)#write memory Building configuration... Cryptochecksum: c47ca90d a167f297 2fb5ca80 2d4343fe 3929 bytes copied in 1.740 secs (3929 bytes/sec) [OK] ASA2(config)#


      These are all the steps, now we should be able to ping User 2 computer from User 1 computer, as well as to connect to User 2 node web page.
